Rotary Automatic Tablet Compression Machine In Pharma High Speed

Brand Name : Canaan Kaixinlong

Model Number : GZPK-26/32/40

Place of Origin : Wenzhou China

MOQ : 1

Price : GZPK-26/ 56000$ GZPK-32/ 57000$ GZPK-40/ 60000$

Payment Terms : L/C, T/T

Packaging Details : The size of non-fumigated wooden cases varies according to the size of the machine

Model : GZPK-26

Capacity （Tablets/h） : 160000

No.of station : 26

Max.tablet diameter（mm） : 25

Rotation speed (r/min) : 11-102

Main.tablet diameter（KN） : 100

Contact Now

High Speed Rotary Tablet Press Double Discharge Automatic High Speed Rotary Tablet Press Tablet Compression

Technical parameters:

Model GZPK-26 GZPK-32 GZPK-40
Capacity (Tablets/h) 160000 210000 260000
No.of station 26 32 40
Max.tablet diameter(mm) 25 16 13
Rotation speed (r/min) 11-102 11-105 11-105
Main.tablet diameter(KN) 100 80 80
Pre-pressure(KN) 20 20 20
Main.filling depth(mm) 20 16 16
Dia.of.die(mm) 38.1 30.16 24.01
Length of punch(mm) 133.6 133.6 133.6
Total power(Kw) 7.5
Overall weight(Kg) 1800
Overall diemensions(mm) 1170×1000(+530)×1950
Noise ≤75DB(A)

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

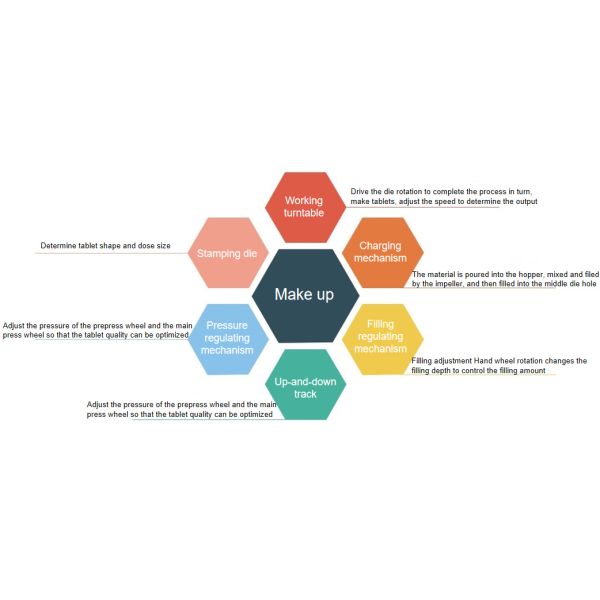

Structural analysis:

Rotary Automatic Tablet Compression Machine In Pharma High Speed

Working principle expansion diagram:
Rotary Automatic Tablet Compression Machine In Pharma High Speed
